Notes on iOS Networking
AFNetworking is a well-known Objective-C networking library built on top of
NSURLSession, Apple's networking foundation introduced with iOS 7. This article follows a request through AFNetworking 3.2.1 to understand what that wrapper actually provides.
The AFNetworking 3.x Structure

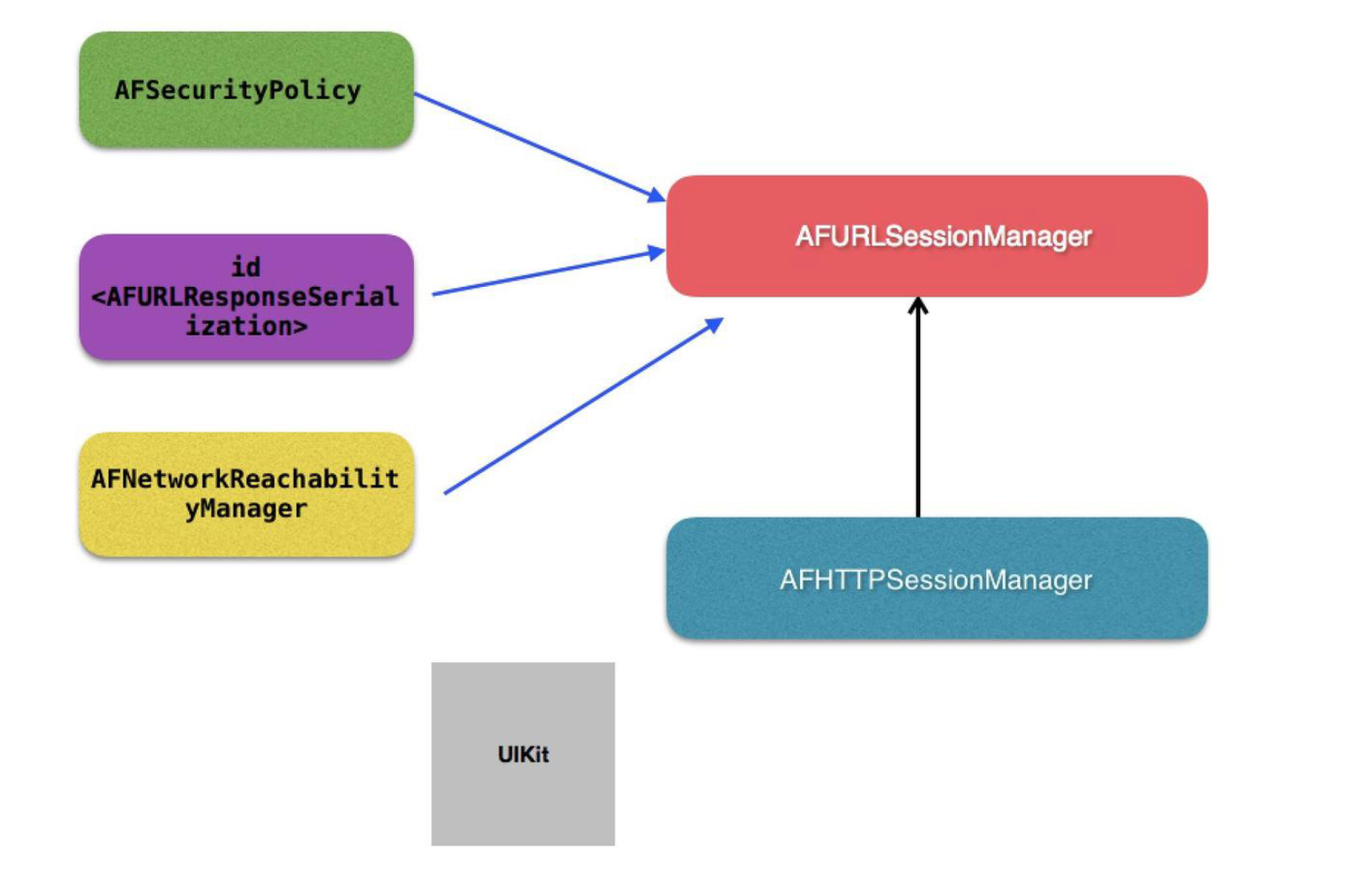

The AFNetworking 3.2.1 source can be summarized with the following architecture:
AFHTTPSessionManager inherits from AFURLSessionManager. The latter provides the core session and task-management behavior, while neighboring components handle request serialization, response serialization, network reachability, and security policy.
An application using the library usually needs only the API exposed by AFHTTPSessionManager, and the official repository documents that surface well. That is enough for ordinary use. Understanding the internals becomes more useful when adapting the library or designing a networking layer with similar responsibilities.
A complete reading of the project would be too broad for one article, so this walkthrough follows a single GET request from the application-facing API down to task creation.
What Happens During a GET Request?
The request begins by creating an AFHTTPSessionManager, configuring its serializers, and calling GET:
AFHTTPSessionManager *manager = [AFHTTPSessionManager manager];
manager.requestSerializer.timeoutInterval = 10;
manager.responseSerializer.acceptableContentTypes = [NSSet setWithObjects:@"application/json", @"text/json", @"text/javascript", @"text/html", @"text/plain", nil];
[manager GET:@"https://app.chaoaicai.com/api/todayApi/discoveryInfo.app" parameters:@{@"name": @"kelvin"} progress:nil success:^(NSURLSessionDataTask * _Nonnull task, id _Nullable responseObject) {
NSLog(@"%@", task);
} failure:^(NSURLSessionDataTask * _Nullable task, NSError * _Nonnull error) {
NSLog(@"%@", error);
}];
The example sets a ten-second timeout and defines the response content types it accepts. The request API then receives a URL, parameters, progress callback, success callback, and failure callback.
Calling the public API is straightforward. The interesting part is what happens next:
- (NSURLSessionDataTask *)GET:(NSString *)URLString
parameters:(id)parameters
progress:(void (^)(NSProgress * _Nonnull))downloadProgress
success:(void (^)(NSURLSessionDataTask * _Nonnull, id _Nullable))success
failure:(void (^)(NSURLSessionDataTask * _Nullable, NSError * _Nonnull))failure
{
NSURLSessionDataTask *dataTask = [self dataTaskWithHTTPMethod:@"GET"
URLString:URLString
parameters:parameters
uploadProgress:nil
downloadProgress:downloadProgress
success:success
failure:failure];
[dataTask resume];
return dataTask;
}
The method creates a data task through dataTaskWithHTTPMethod:..., resumes it, and returns it to the caller. Returning the task gives the application a handle for later cancellation or observation.
- (NSURLSessionDataTask *)dataTaskWithHTTPMethod:(NSString *)method
URLString:(NSString *)URLString
parameters:(id)parameters
uploadProgress:(nullable void (^)(NSProgress *uploadProgress))uploadProgress
downloadProgress:(nullable void (^)(NSProgress *downloadProgress))downloadProgress
success:(void (^)(NSURLSessionDataTask *, id))success
failure:(void (^)(NSURLSessionDataTask *, NSError *))failure
{
NSError *serializationError = nil;
NSMutableURLRequest *request = [self.requestSerializer requestWithMethod:method URLString:[[NSURL URLWithString:URLString relativeToURL:self.baseURL] absoluteString] parameters:parameters error:&serializationError];
if (serializationError) {
if (failure) {
dispatch_async(self.completionQueue ?: dispatch_get_main_queue(), ^{
failure(nil, serializationError);
});
}
return nil;
}
__block NSURLSessionDataTask *dataTask = nil;
dataTask = [self dataTaskWithRequest:request
uploadProgress:uploadProgress
downloadProgress:downloadProgress
completionHandler:^(NSURLResponse * __unused response, id responseObject, NSError *error) {
if (error) {
if (failure) {
failure(dataTask, error);
}
} else {
if (success) {
success(dataTask, responseObject);
}
}
}];
return dataTask;
}
This method accepts the HTTP method, URL, parameters, progress callbacks, and completion callbacks. It asks the request serializer to build an NSMutableURLRequest. If serialization fails, AFNetworking dispatches the failure callback onto its configured completion queue, or the main queue when no custom queue exists.
After serialization succeeds, the manager creates the NSURLSessionDataTask and converts the lower-level completion handler into the public success and failure callbacks.
- (NSURLSessionDataTask *)dataTaskWithRequest:(NSURLRequest *)request
uploadProgress:(nullable void (^)(NSProgress *uploadProgress))uploadProgressBlock
downloadProgress:(nullable void (^)(NSProgress *downloadProgress))downloadProgressBlock
completionHandler:(nullable void (^)(NSURLResponse *response, id _Nullable responseObject, NSError * _Nullable error))completionHandler
{
__block NSURLSessionDataTask *dataTask = nil;
url_session_manager_create_task_safely(^{
dataTask = [self.session dataTaskWithRequest:request];
});
[self addDelegateForDataTask:dataTask uploadProgress:uploadProgressBlock downloadProgress:downloadProgressBlock completionHandler:completionHandler];
return dataTask;
}
Execution has now moved into AFURLSessionManager. Request construction and serialization happened in AFHTTPSessionManager; this layer is responsible for creating and managing the task.
The url_session_manager_create_task_safely block initializes a task from the serialized request, then addDelegateForDataTask:... associates AFNetworking's delegate object with it. The actual task creation API belongs to Foundation:
/* Creates a data task with the given request. The request may have a body stream. */
- (NSURLSessionDataTask *)dataTaskWithRequest:(NSURLRequest *)request;
AFNetworking creates an AFURLSessionManagerTaskDelegate for the task. Its declaration shows that it participates in the session task, data, and download delegate protocols:
@interface AFURLSessionManagerTaskDelegate : NSObject <NSURLSessionTaskDelegate, NSURLSessionDataDelegate, NSURLSessionDownloadDelegate>
The delegate is initialized with the task:
- (instancetype)initWithTask:(NSURLSessionTask *)task;
This object gathers task state, translates delegate events into progress and completion callbacks, and separates per-task behavior from the session manager itself.

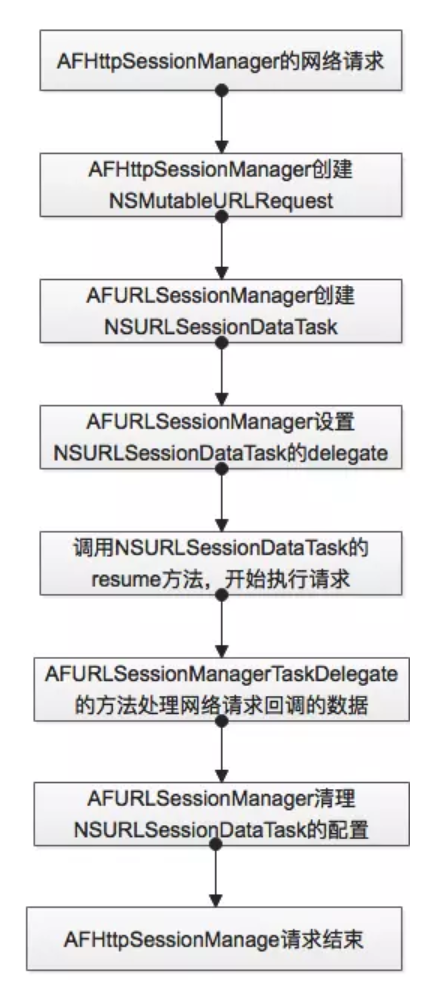

The end-to-end request flow can be summarized with the following diagram:
Ideas for a Networking Layer Built on AFNetworking
Before optimizing the layer, it helps to map AFNetworking's objects to the underlying HTTP and URL Loading System concepts. AFHTTPSessionManager owns an NSURLSession, creates requests through serializers, creates tasks, and schedules those tasks on the session.
Repeatedly creating managers is usually unnecessary. A shared or otherwise long-lived manager allows the underlying NSURLSession to reuse connections according to system policy. A project can centralize that manager in a networking client rather than constructing one for every request.
The maximum number of concurrent operations can also be constrained through the session manager's operation queue when the product requires serialized or bounded execution:
self.operationQueue = [[NSOperationQueue alloc] init];
self.operationQueue.maxConcurrentOperationCount = 1;
Connection reuse and pipelining behavior ultimately depend on NSURLSessionConfiguration, the protocol, and server support. A configuration can request HTTP pipelining where appropriate:
if (!configuration) {
configuration = [NSURLSessionConfiguration defaultSessionConfiguration];
}
self.sessionConfiguration.HTTPShouldUsePipelining = YES;
self.configuration = configuration;
The larger lesson is that AFNetworking does not replace Apple's networking stack. It organizes request construction, serialization, task delegation, progress reporting, and completion handling around NSURLSession, giving applications a smaller and more consistent API surface.
